The brag page. Your chance to show off your rig...
Not listed or need to update your 'blueprint'? Please login to submit your specs.
Figures in brackets are [non-overclocked] and RAM timings are: T(RAS)-T(RCD)-T(RP)-CAS Latency
Unsure of program settings or versions? See the benchmark notes page for more info.
| Beorn2 | Enraged Stoat | FreddyK | Gandalf | HeMan | JRUDMAN | mauke_warrior | Narsil | Pommie Legend | Rune |
cpu:
Core 2 Quad Q9550@2.83GHz (333MHz x8.5) L2 Cache 12MB SLB8V
cool:
Stock HSF
m/b:
GIGABYTE EP45T-DS3R DDR3-1900(OC) FSB-1600MHz CrossfireX PCI-e 2.0 P45 + ICH10R Chipset LGA775
ram:
4GB X2 2GB DDR3 DUAL CHANNEL 1333MHz PC3-10600 CL9
grfx:
Force3D Radeon HD 4850 512MB GDDR3
hdd:
1.66TB Total. \\ 1TB WD green, 500GB WD AAKS SATAII, 160GB Maxtor SATA
cd/dvd:
HL-DT-SL DVDRAM GSA-4163B LG DVD/CD writer
psu:
OCZ 600W POWERSTREAM.
case:
iCute something or rather.
screen:
Chimei CMV 938D 19'' widesreen LCD 5ms response 1440x900 native rez
keybd:
Mini-keyboard.
mouse:
Logitech MX518.
o/s:
Windows 7 - 64 bit
Notes:
I am Yoda Dee.
Benchmarks:
Sisoft Sandra
CPU Arithmetic: Aggregate = 45 GOPS, Dhrystone = 52.17 GIPS, Whetstone = 37.69 GFLOPS
CPU Multimedia: Aggregate = 110.8 MPx/s, Integer = 131.59 MPx/s, Floating-Point = 90 MPx/s
CPU Crypto: Crypto B'width = 587 MB/s, AES256 Crypto = 478 MB/s, SHA256 Hash = 696 MB/s
Memory Bandwidth: Aggregate = 7 GB/s, Int Buff'd = 7 GB/s, Float Buff'd = 7 GB/s
Super PI mod v1.5 XS to one million places
16.843s
Windows 7 Experience Index
5.2 (based on hard drive transfer rate subscore)
Wishlist:
- 24'' LCD 1080p, response < 5ms
- CrossfireX with another HD4850 gfx card, 1GB version
- Core i7 System
cpu:
Core2Duo E8500 3.16Ghz
cool:
Standard
m/b:
Gigabyte EP45T-UD3P
ram:
4GB of OCZ Platinum DDR3 1333Mhz PC3-10666 dual channel @ 7-7-7-20
grfx:
BFG Tech GTX260 Maxcore + GeForce 9500GT
hdd:
Highpoint RocketRAID 3520. 178GB raid0 2x Super-Talent Ultradrive ME 64GB SSD + 1x OCZ Vertex Turbo SSD (system). 6TB raid5 5x 1.5TB Seagates (storage).
cd/dvd:
Lite-On LH20A1L DVDRW
psu:
Ultra 650w modular
case:
Ultra m series
screen:
Dell 3007FPW 30'' TFT 2560x1600 (and a 2405FWP 24'' TFT 1900x1280 on the side)
keybd:
Das Keyboard Ultimate
mouse:
Razer Deathadder
o/s:
Vista 64
Notes:
It's quite heavy to cart around. Nothing is overclocked. Usually triple headed with a 30'' TFT and 2x 24''s.
Benchmarks:
Vista Experience Index
5.7
CrystalDiskMark 2.2 Sequential
C: 516MB/sec read, 45MB/sec write. D: 470MB/sec read, 1.1GB/sec write
CrystalDiskMark 2.2 Random 512k clusters
C: 1.3GB/sec read | 401MB/sec write. D: 1.3GB/sec read, 1GB/sec write
Super PI mod1.5 XS
1 million digits 14.972s
Counter Strike:Source Graphics Test
415 fps @ 2560x1600 max detail (noAA)
cpu:
Dual Core AMD Opteron 170 (Toledo) @10x=2.50GHz [2.00GHz], Vcore=1.35V
cool:
Thermalright SI-128 Heatsink + Arctic Cooling Fan 12L 120mm
m/b:
DFI LANParty UT SLI-DR Expert, nVidia-nForce4, bios nf4ed406
ram:
2048Mb DDR (in Dual-mode): 2x1GB Corsair VS1GB400C3 @ 8-3-3-3
grfx:
(PCI Express 1.0 x8: XFX GeForce 8800 GTS 320MB) x2 SLI Baby!
hdd:
924Gb total: 1x80Gb Maxtor DiamondMax Plus 9 ATA/133, 1x200Gb Maxtor DiamondMax Plus 10 SATA, 1x250Gb Seagate Barracuda ST3250824AS SATA, 1x74Gb Western Digital Raptor 10000RPM SATA, 320Gb Seagate Barracuda 7200.10 (MediaBox)
cd/dvd:
GSA-4163B LG16x Super Multi DVD/CD ReWriter (Firmware A105)
psu:
Enermax Liberty 500W
case:
Lian Li PC-60 (brushed aluminium finish)
screen:
ViewSonic VA912 19'' LCD, 8ms response, 1280x1024 native resolution
keybd:
Some old POS! Model number 104DAW15-319
mouse:
Logitech G7
o/s:
Windows 7100 RC and loving it!
Notes:
Must be verging on claiming the title of ''Freddy Low Spec''!
Benchmarks:
3DMark06
3DMark score = 8929, SM2 score = 4150, HDR/SM3 score = 4368, CPU score = 1866
3Dmark Vantage
3DMark score = P10484, GPU score = 9172, CPU score = 18372
Super PI to one million decimal places
34.3 seconds
Windows Experience Index (Windows7)
5.3 determined by CPU
Wishlist:
- Windows 7
- Shuttle SX58H7 INTEL X58/ICH10R
- Swiftech APEX ULTRA PLUS Liquid Cooling Kit
- OCZ VERTEX Series 60GB SATA II 2.5'' SSD
cpu:
Intel Core 2 Duo E6750, 2.66GHz, 1333MHz FSB, Socket 775, 32/64-Bit

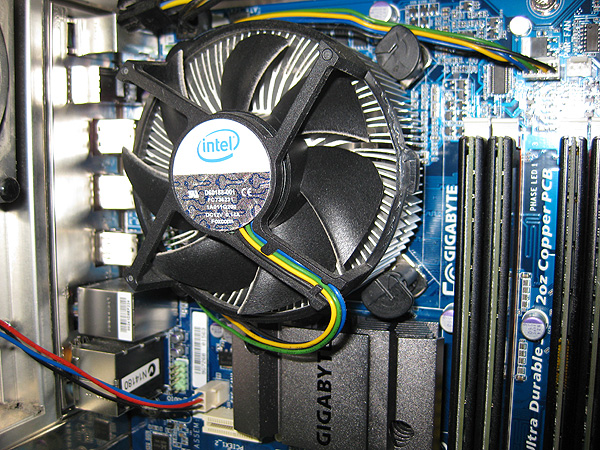

cool:
Stock retail fan (variable speed)

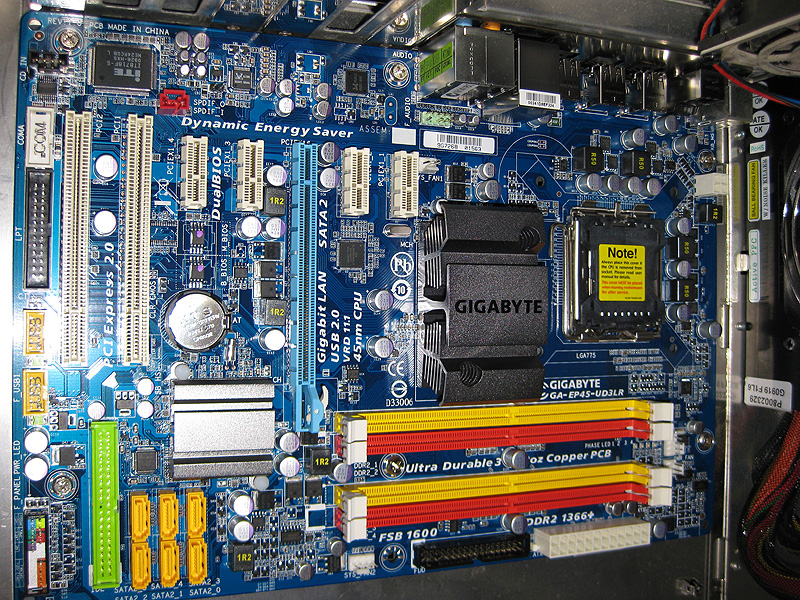

m/b:
Gigabyte GA-EP45-UD3LR, Socket 775, 1600MHz FSB

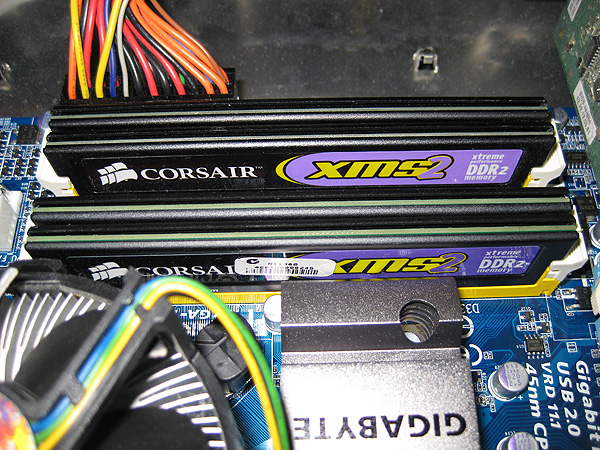

ram:
Total 4GB: 2x Corsair XMS2 - TWIN2X2048-6400 in Dual Mode, DDR2-800, PC2-6400, CL5
grfx:
XFX Geforce 8800GT Extreme Edition, 512MB GDDR3, Forceware 196.21 drivers

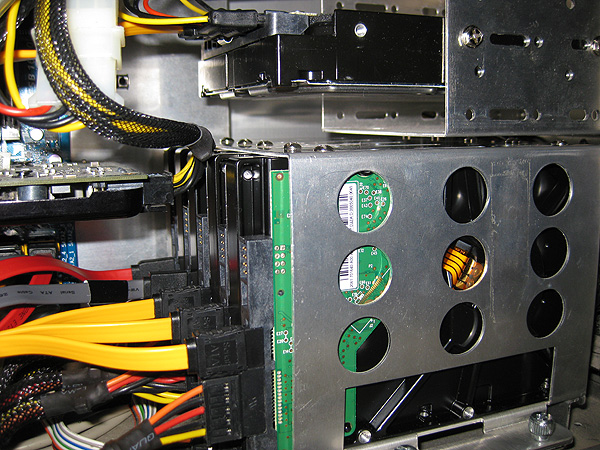

hdd:
Total 6.25TB (5.5TB internal, 750GB external via ''the toaster'') across 8 SATA HDD's
Seagate: 250GB + 2x500GB. Western Digital: 5x1TB Caviar Green.
Seagate: 250GB + 2x500GB. Western Digital: 5x1TB Caviar Green.
cd/dvd:
LG GSA-4167B Double Layer, SuperMulti (48x32x48x16x8x16) Firmware: JL02

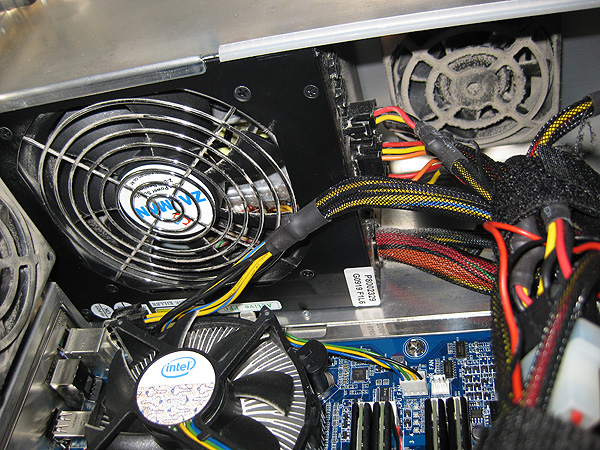

psu:
Zalman ZM600-HP, Ultra-Quiet, 600W ATX PSU, Active PFC, Modular Cable System
case:
Lian Li PC-60 (brushed aluminium finish)
screen:
ViewSonic VX2433WM 24'' LCD, 2ms response, Full HD 1080p, 1920x1080 native resolution, HDCP
keybd:
Microsoft Multimedia Keyboard 1.0A
mouse:
Microsoft Sidewinder X8 Wireless Gaming Mouse
o/s:
Windows 7 Home Premium 64-bit
Notes:
Sounds via Altec Lansing VS2221 Speakers
External storage via NexStar eSATA Dual Bay Hard Drive Dock
Sandra/3dMark scores on same hardware under Vista
XP scores on same hardware: 3DMark06=11355, SuperPI=19.141
External storage via NexStar eSATA Dual Bay Hard Drive Dock
Sandra/3dMark scores on same hardware under Vista
XP scores on same hardware: 3DMark06=11355, SuperPI=19.141
Benchmarks:
Sisoft Sandra
CPU Arithmetic: Aggregate = 20 GOPS, Dhrystone = 22.78 GIPS, Whetstone = 17.17 GFLOPS
CPU Multimedia: Aggregate = 35.8 MPx/s, Integer = 43.87 MPx/s, Floating-Point = 27.73 MPx/s
CPU Crypto: Crypto B'width = 203 MB/s, AES256 Crypto = 160 MB/s, SHA256 Hash = 246 MB/s
Memory Bandwidth: Aggregate = 6.12 GB/s, Int Buff'd = 6.13 GB/s, Float Buff'd = 6.11 GB/s
3DMark06
3DMark score = 11277, SM2 score = 5359, HDR/SM3 score = 5376, CPU score = 2368
Super PI mod v1.5 XS
1M dec.places = 19.594s
Windows 7 Experience Index
Base score: 5.9=hdd, cpu+ram=6.2, grfx+gaming=6.9
Wishlist:
- Intel Core 2 Quad Q9650 3.0 GHz, 1333MHz FSB, Socket 775, Retail pack with fan
cpu:
Intel Core 2 Duo E6400 2.13Ghz 2MB Cache 1066Mhz Socket T (LGA775) CPU
cool:
m/b:
Gigabyte GA-965P-DS4 Socket T (LGA775), Intel P965 Express 1066mhz FSB
ram:
Corsair Dual Channel 2*1GB PC6400 DDR2 800mHz 5-5-5-12
grfx:
Gigiabyte ATI Radeon 4870 Catalyst 8.7 Drivers
hdd:
Seagate Drives, Sata3.0 80Gb, Sata3.0 200GB, IDE 160GB
cd/dvd:
Lite-On Blue Ray Reader 8* DVD Writer
psu:
Enermax MODU82+ 625W
case:
Pretty damn boring
screen:
keybd:
mouse:
o/s:
Windows XP Home SP3
Notes:
One day I'll crossfire this mofo, and overclock
the living sh*t out of it :-)
cpu:
Intel Core 2 Quad Q9300 2.50 GHz, 1333MHz FSB, Socket 775
cool:
default fan that came with cpu
m/b:
Gigabyte GA-EP35C-DS3R Motherboard, Socket 775, 1600MHz FSB, 4xDIMM DDR2, 2xDIMM DDR3, PCIe-16, 3xPCI, 3xPCIe-1, 12xUSB2, Audio, ATA, RAID, ATX
ram:
4GB 2x A-Data 800MHZ 2GB DESKTOP RAM, 1x2GB, DDR2-800, PC2-6400, CL5, DIMM
grfx:
Sapphire HD 4850 Video Card, Radeon HD 4850, 512MB, DDR3, PCIe-16, TV out, DVI, HDTV, CrossFire
hdd:
Total: 1.5 TB Seagate Barracuda : 500GB, Western Digital: 1TB Caviar Green
cd/dvd:
Asus DRW-2014L1T DVD Writer, DVD 16R/20W/8RW, CD 48R/48W/32RW, Internal, SATA, Black, LightScribe
psu:
EZCool Bluefire (140mm LED Fan), 600W ATX PSU, Titanium
case:
NZXT Lexa Blackline Blue LED Edition ATX Full Tower Case, Side Window, Black
screen:
keybd:
mouse:
o/s:
Windows XP Black 4.0 SP3
Notes:
External Harddrive
Western Digital 1TB
Benchmarks:
3DMark06
3DMark score = 12148, SM2 score = 4632, HDR/SM3 score = 5432, CPU score = 4068
Super PI mod v1.5 XS
1M dec.places = 20.250s
cpu:
AMD ATHLON 64 X2 6000+ DUAL CORE SOCKET AM2 o/c to 3.12GHz
cool:
Standard
m/b:
ASUS M2N-SLI DELUXE SUPPORT AMD® SOCKET AM2 ATHLON CPU ATX NFORC
ram:
2 x GENERIC 2GB DDR2-800 PC2 6400 DUAL CHANNEL
grfx:
Saphire Radeon HD4850 512MB Big Fan ed.
hdd:
80gb ide, 250gb sata, 300gb sata, 120gb sata, 320gb sata, - Just squeezing into the TB Club
cd/dvd:
liteon 16X dvd dl rw
psu:
Auriga Titanium 650W psu. +12v1 - 19A, +12v2 - 20A
case:
Raidmax Ninja Box - Blue
screen:
22'' Benq E2200HD 1980 x 1080P Monitor + 32'' Uniden LCD TV 1980 x 1080i Dual Monitor Clone view setup.
keybd:
LASER USB Multimedia VoIP keyboard (KB-USBBKVPU)
mouse:
Logitech MX518
o/s:
Windows Vista Ultimate 64bit
Notes:
- Acer Aspire One 8.9'' Netbook with xp black 30
- Xbox 360 running custom modified firmware to play backup games
- Knife
- Flamethrower
- Xbox 360 running custom modified firmware to play backup games
- Knife
- Flamethrower
cpu:
Athlon 64 x2 4200+ (Manchester) 2.2Ghz
cool:
Stock AMD heat sink and fan
m/b:
GA-K8NF-9 939 Socket nForce4-4X Chipset
ram:
2048Mb DDR: 2x OCZ 512Mb PC3200 DDR400 @ CL 8-4-4-2.5 (Dual Channel), 2x Corsair 512MB PC3200 @ CL 8-3-3-2.5 (Dual Channel)
grfx:
Gigabyte 8800GT
hdd:
1.76 TB total: 120GB Seagate Barracuda ATA/100 + 640GB Western Digital Caviar Black SATA + 1TB Western Digital Caviar Green SATA
cd/dvd:
LG GSA-4163B 40x24x40x16x6x16
psu:
Enermax EG495P-SFMA24P, NoiseTaker, 485W
case:
Meridian Clio II ATX (beige finish)
screen:
keybd:
mouse:
o/s:
Windows XP Home SP3
Notes:
Still flying the AMD flag.
Member of the terabyte club
Member of the terabyte club
cpu:
Intel Core2Duo 6420
cool:
Stock
m/b:
Asus P5N-E SLI
ram:
2Gb DDR2-800
grfx:
Albatron 8600 GTS
hdd:
400Gb Seagate Barracuda hard drive
cd/dvd:
LG DVD writer
psu:
Enermax Liberty 500W
case:
Lian-Li PC7B plus II
screen:
keybd:
mouse:
o/s:
Windows XP Pro SP2 dual-booting with Xubuntu
cpu:
Turion64 MT30 @1.6Ghz
cool:
Laptop fan
m/b:
Advent Laptop,
ram:
2x 512Mb PC2700 333 Mhz SODIMMs
grfx:
Radeon M200 128Mb shard gfx
hdd:
40GB
cd/dvd:
8x DVD +/- rewriter
psu:
Laptop PSU
case:
Laptop Casing
screen:
keybd:
mouse:
o/s:
Windows XP home (legal)
